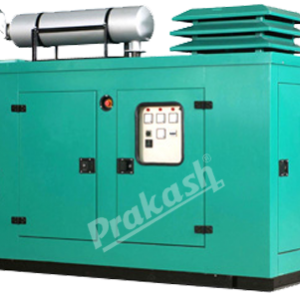

Three Phase 7.5 to 8.7 kva

Description

Engine
Cooling Air (Radial)
No. of Cyl. One
Fuel H.S. Diesel
Type Vertical ,4-stroke,compression ignition
Speed 1500 RPM/1800 RPM
Starting Handle start (Optional-Electrical)
Fuel tank 5 to 10 liters
A. C. Generator
Voltage415 V
Phase Three
Frequency50 Hz
Regulation± 5 % Max.
InsulationF Class
Technical Specification
AC Generators (Alternator) Diesel Engine
Model Rated Power No. of Phase Current (Amps) Power Factor Rated Power (HP) Dry Weight (Kg)
KVA KW
PAT 500  * 5.0 4.0 THREE 7.0 0.8 (LAG) 6.25 270
PAT 625  * 6.25 5.0 THREE 8.7 0.8 (LAG) 7.0 275
PAT 750  * 7.5 6.0 THREE 9.5 0.8 (LAG) 10.0 300
PAT 870  * 8.7 7.0 THREE 11.0 0.8 (LAG) 11.0 318
