30 to 125 Kva

Categories: ,

Description

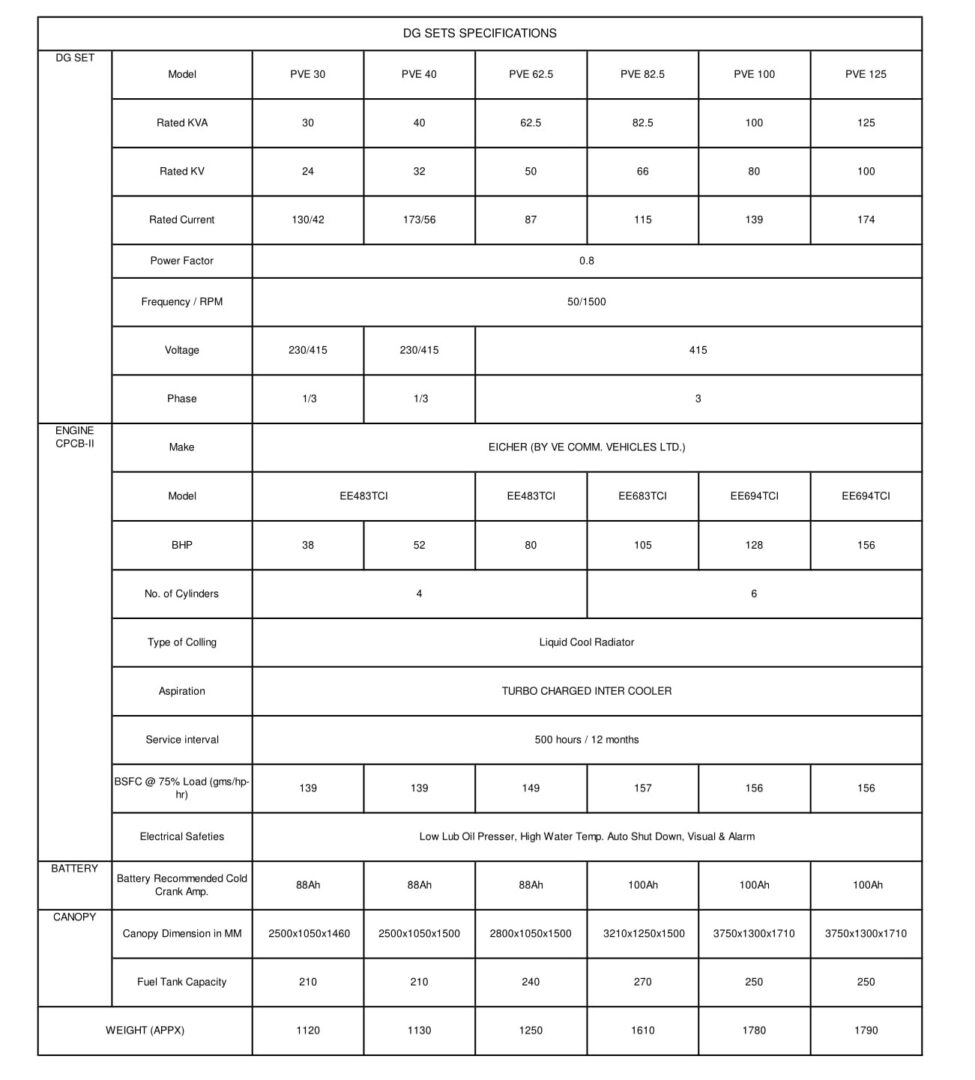

DG SETS SPECIFICATIONS
DG SET Model PVE 30 PVE 40 PVE 62.5 PVE 82.5 PVE 100 PVE 125
Rated KVA 30 40 62.5 82.5 100 125
Rated KV 24 32 50 66 80 100
Rated Current 130/42 173/56 87 115 139 174
Power Factor 0.8
Frequency / RPM 50/1500
Voltage 230/415 230/415 415
Phase 1/3 1/3 3
ENGINE CPCB-II Make EICHER (BY VE COMM. VEHICLES LTD.)
Model EE483TCI EE483TCI EE683TCI EE694TCI EE694TCI
BHP 38 52 80 105 128 156
No. of Cylinders 4 6
Type of Colling Liquid Cool Radiator
Aspiration TURBO CHARGED INTER COOLER
Service interval 500 hours / 12 months
BSFC @ 75% Load (gms/hp-hr) 139 139 149 157 156 156
Electrical Safeties Low Lub Oil Presser, High Water Temp. Auto Shut Down, Visual & Alarm
BATTERY Battery Recommended Cold Crank Amp. 88Ah 88Ah 88Ah 100Ah 100Ah 100Ah
CANOPY Canopy Dimension in MM 2500x1050x1460 2500x1050x1500 2800x1050x1500 3210x1250x1500 3750x1300x1710 3750x1300x1710
Fuel Tank Capacity 210 210 240 270 250 250
WEIGHT (APPX) 1120 1130 1250 1610 1780 1790
