Bio-Mass

Description

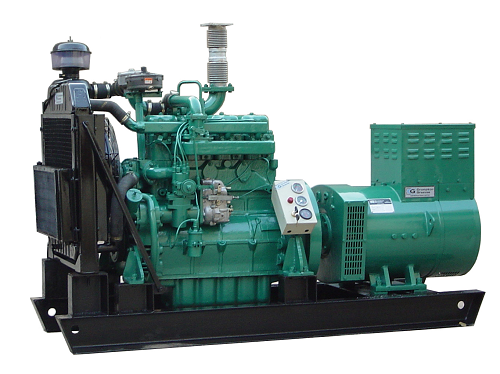

Bio-Mass Genset 15 To 40 KVA

Technical Specification
Model PNG-15-BM PNG-30-BM PNG-40-BM
Rated Power KVA (KW) 15 (12) 30 (24) 40 (32)
Rated Current (Amps/Ph) 21 42 53
Dimensions L x W x H (cm) 140 x 70 x 125 200 x 70 x 125 227 x70 x 125
Dry Weight(kgs) 725 1125 1250
Model PN- 2-BM PN- 4-BM PN- 6-BM
Power at 1500 RPM (BHP) 20 38 56
No. of cylinders 2 4 6
Bore x Stroke (mm) 110 x 120 110 x 120 110 x 120
Swept Volume (Lts.) 2280 4561 6840
Aspiration Natural Natural Natural
Lub Oil Sump Capacity 5 10 15
Governor Mico RSV Class A-2 (Mechanical/Electronic)
Engine

Prakash water cooled, Spark Ignition, 4-Stroke, 1500 rpm continuous rating, heavy duty, multi-cylinder, Engine, Specially designed and engineered to operate with gases obtained form  gasifier .A specially designed automatic air and fuel controller and mixing system is provided to take care of efficient, smooth working of engine from no load to full load .These engines operates smoothly at  vast combinations of producer gas/syn gas at negative suction upto 80 mm of water column hence root blower is not required and gases can be feed at normal available pressure. These are inclusive of the followings,

  • 12 V Starter
  • Radiator with Fan and water Pump
  • Lub Oil Filter
  • Flywheel suitable for Genset (Heavy)
  • Panel with Charging Ammeter ,Oil Pressure gauge , water temperature gauge and starting switch
  • Battery Charging Alternator
  • Air / gas mixing system
  • Heavy Duty Air Filter
  • Industrial Silencer
Alternator

Prakash highly efficient self Excited, Self Regulated, screen protected, drip proof, suitable for continuous operation ,1 or 3 Phase 230 / 415 Volts, 0.8 pf, 50 Hz, Class F insulation alternator confirming to IS:4722/IS:13364/BS:5000. Provided with IP 21 protection,10 % overloading and capability of starting the motors at 3 times the rated current of alternator

Mounting Frame

Engine and Alternator are mounted, coupled, aligned on a common rigid base frame, having provision for antivibration mounting and holes for safely lifting of complete D. G. Set.

Control Panel
A superior Quality control panel of suitable CRC sheet, powder coated for long life and better finish complete with followings,
  • M.C.B./M.C.C.B.
  • Ammeter
  • Lub Oil Filter
  • Incoming / Outgoing terminals
  • Hour Meter
  • Voltmeter
  • Frequency Meter
  • Heavy Duty Air Filter
  • Phase Indicator Lamps

Legend

GASIFIER
DRAIN TUB
DISTANCE PIECE
VENTURI SCRUBBER
DRAIN BOX WITH DRAIN TUB
COARSE FILTER
FINE FILTER I
FINE FILTER II
SAFETY FILTER
GAS CONTROL VALVE GAS BLOWER
FLARE WITH VALVE
ENGINE SHUT OFF VALVE
WATER SEPARATION BOX
GAS GENSETS
